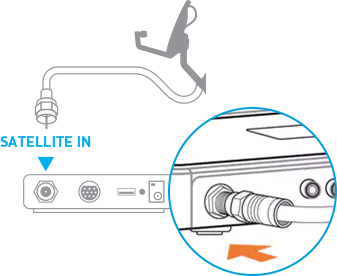

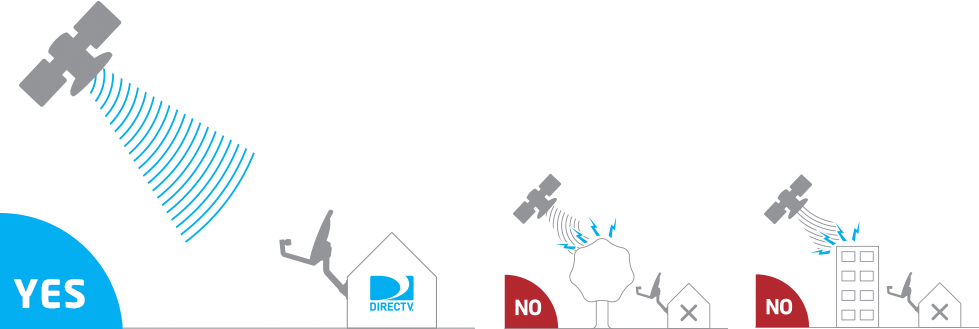

Before you start, make sure and determine whether your Set Top box and TV are either Standard Definition
(SD) or High Definition (HD). This will help you determine which cable will be used to connect the Set Top
Box directly to the TV.
Remember that to see the guide in HD or High Definition programming, you need a
HD Set Top Box, an HD TV and an HDMI cable.
I. Connecting a standard Set Top Box or a standard DVR Set Top Box to a Standard Definition TV (or a
HD TV set of 480i resolution).
RECOMMENDED!
Option 1:Using an RCA cable (Component or composite). This option supports
standard definition video and stereo audio (not Dolby Digital).

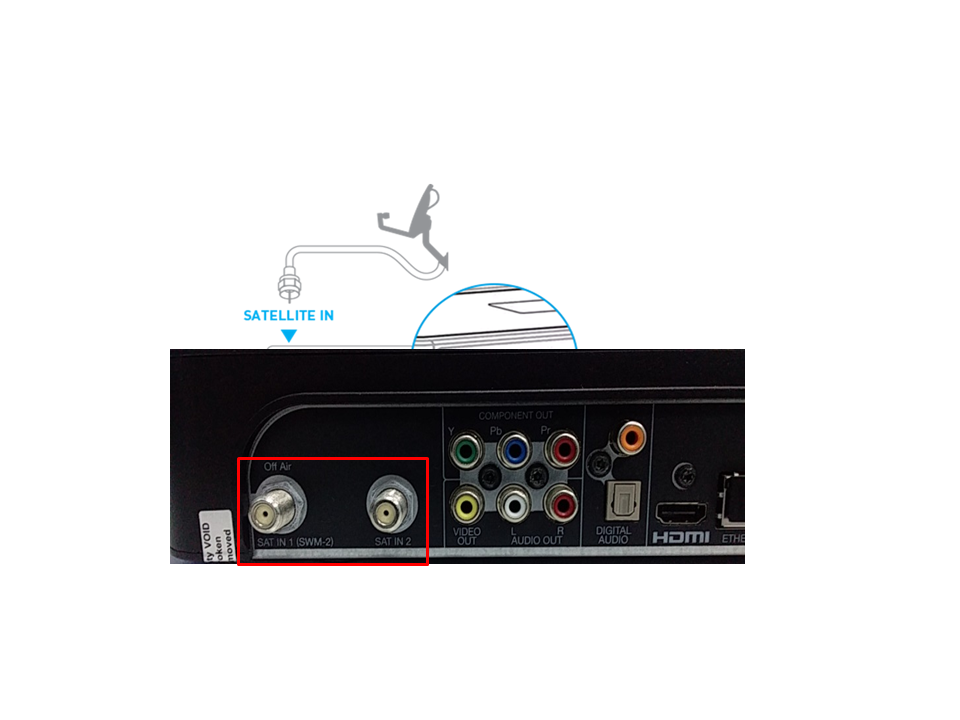

How to connect: Connect the yellow, white, and red ends of the RCA cable to the corresponding output
ports (white, yellow and red) for (A / VOUT) on the back of your Set Top Box. Connect the other end of the
cable into the appropriate input port (A / VIn) in the back of your TV.
Note: If you do not see a clear image, the input configuration on your TV may be incorrect (e.g., Video
1). You can change your TV input using the TV remote control or manually by pressing the Input/source, TV
/ VCR, or A / V on the control panel.
Option 2: Using a coaxial cable. This option supports standard definition video and mono audio.
How to Connect: Connect one end of the cable into the port “TV out “in the back of your Set Top Box.
Connect the other end of the cable into the "In from Antenna" on the back of your TV.
The ports to be used are: For the TV: “Ant in” and for the Set Top Box “Out to TV”.
Option 2: Using a coaxial cable. This option supports standard definition video and mono audio.
Use the TV's remote control (not your DIRECTV remote) to tune to channel 3 or 4.
II. Connecting an HD Set Top Box or an HD DVR Set Top Box to an HD TV
RECOMMENDED!
Option 1:Using an HDMI cable. This option supports HD video and Dolby
Digital audio.
How to Connect it: Connect one end of the cable into the HDMI port on the back of your Set Top Box.
Connect the other end of the cable into the HDMI port on the back of your TV.
Note: If you do not see a clear image, the input configuration on your TV may be incorrect (e.g., Video
1). You can change the input on your TV with the TV remote control or manually by pressing the input
source, TV / VCR, or A / V on the control panel of the TV.
Note that if the connection is via an HDMI cable, the input channel is HDMI 1, 2, and 3. Always check
where the cable was connected to the TV.
Option 2: Using RCA cables (Component)
This option supports high definition video and audio. You need two sets of RCA cables.
How to Connect: Connect the green, blue and red ends of the RCA Cable to the output ports in green, blue
and red accordingly. Connect the other end of the cable into the corresponding input ports on the back of
your TV.
For audio, connect the red and white ends of the second cable to the output ports red and white on the
back of your Set Top Box. Connect the other end of the cable into the corresponding input ports on the
back of your TV. Do not use the yellow end of the cable.
Adjust the resolution of the TV to 1080i or to 720p.
Note: If you do not see a clear image, the input configuration on your TV may be incorrect (e.g.
Component 1). You can change the input on your TV with the TV remote control or manually by pressing the
Input , Source , TV / VCR , or A / V on the control panel of the TV .
